Elevators - thyssenkrupp Elevator Canada, Ltd.

Elevators


Always a perfect fit. Thanks to our broad product portfolio.

Developing innovative elevators – that's what inspires us, day after day, year after year. As a renowned quality provider, we offer a wide variety of elevator systems from a single source, individually tailored to your architectural design.

No matter the building type or how many systems you plan to use, our sustainable products enhance user safety, maximize efficiency, make optimal use of available space and deliver superior ride comfort.

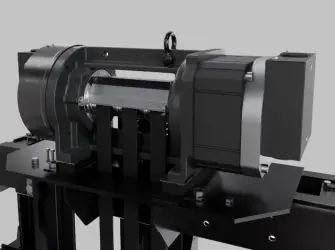

EOX

Eco-efficient and digitally native elevator platform. EOX is specifically engineered to provide your project with premium, future-proof features at an entry level price point. Designed to facilitate streamlined manufacturing and delivery processes, EOX safeguards your project’s budgets and construction timelines. From reliable performance that ensures a smooth, quiet, reliable, and quick ride – to providing your building with up to 45% energy reduction than other low-to-mid-rise options – EOX allows you to move beyond what’s expected.

EOX

  • Travel height: 30.4 m (100 ft)
  • Maximum speed: 0.76 m/s (150 fpm)
  • Maximum capacity: 1,500 kg (3,500 lbs)

Learn more >

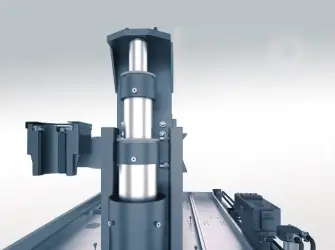

endura

Since 1937, our hydraulic elevator system has been the standard for quality and reliability. The endura elevator continues that heritage as a smooth, quiet and efficient workhorse that exceeds the demands of today’s low-rise buildings. endura can be configured to meet your building specifications and is customizable with a variety of interior cab and fixture designs.

endura

  • Travel height: 18 m (60 ft)
  • Maximum speed: 1 m/s (200 fpm)
  • Maximum capacity: 2,500 kg (5000 lbs)

Learn more >

endura MRL

endura MRL is a hydraulic elevator for low-rise buildings. You no longer need a machine room — the pump unit is located in the pit. The simplified installation requires less coordination. It also has fewer moving parts, so you’ll have lower maintenance costs.

endura MRL uses little electricity and has a small environmental impact. In fact, if you choose enviromax®, the industry's first vegetable-based hydraulic fluid, you can virtually eliminate petroleum. When compared to traction MRL elevators, endura MRL can save up to $100,000 on costs over 25 years.

endura machine room-less (MRL)

  • Travel height: 10.2 m (33.5 ft)
  • Maximum speed: 0.76 m/s (150 fpm)
  • Maximum capacity: 2,500 kg (5000 lbs)

Learn more >

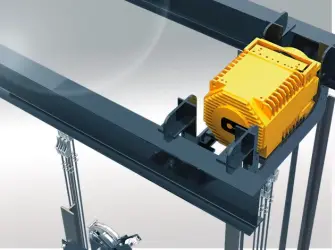

evolution

For low- to mid-rise buildings, this MRL elevator was developed for you. Whether it's increased speed, capacity or energy efficiency, you can choose an elevator that comes without compromises. You also get special features like regenerative drive and electronic auto-rescue without paying extra. Best of all, everything fits into the hoistway.

evolution 200

  • Travel height: 100 m (350 ft)
  • Maximum speed: 3 m/s (600 fpm)
  • Maximum capacity: 2,500 kg (5000 lbs)

Learn more >

synergy

Today’s low to mid-rise buildings are more innovative than ever, from how much energy they consume to how much space they occupy. The building’s transportation system should be just as innovative. synergy elevator provides greater flexibility in configuration, load capacity and speed, while its machine room-less design allows you to maximize building space. synergy also features our advanced regenerative drive technology, which captures generated power and feeds it back into the building’s electrical grid, reducing energy costs.

synergy: Building supported - Perfomance.

  • Travel height: 90 m (300 ft)
  • Maximum speed: 2.5 m/s (500 fpm)
  • Maximum capacity: 2,500 kg (5,000 lbs)

Learn more >

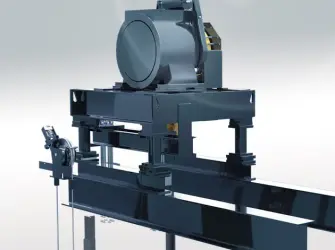

momentum

Every day, high-rise buildings are breaking the barrier on what is possible in construction and design. To match this level of innovation, you need an elevator system that is as fast at adapting to your vision as it is at moving people. momentum elevator proves there are no limits. It combines our most advanced technology with the creativity of our most experienced engineers. The result is an elevator that moves with precision and speed while remaining remarkably energy efficient and reliable.

momentum Standard

  • Travel height: 90 m (300 ft)
  • Maximum speed: 2.5 m/s (500 fpm)
  • Maximum capacity: 2,500 kg (5000 lbs)

Learn more >

momentum Performance

  • Travel height: 250 m (825 ft)
  • Maximum speed: 6.1 m/s (1200 fpm)
  • Maximum capacity: 1,800 kg (4000 lbs)

Learn more >

Freight Elevators

The qualities you need in your freight elevators are the specifications we use to design and build them. We can handle any factory, warehouse or industrial project in the most economical and efficient manner possible. The controllers used in our freight elevators are the same advanced technology controllers used in our industry-leading passenger elevators.

Class A: General Freight Loading

Ideal when the load is distributed, the weight of any single piece is not more than 1/4 the capacity of the elevator and the load is handled on and off the car platform manually or by means of hand trucks.

Class B: Motor Vehicle Loading

The freight elevator is used solely to carry automobile trucks or passenger automobiles up to the rated capacity of the elevator.

Class C1: Industrial Truck Loading

A four-wheeled vehicle may be used to load and unload the elevator. The combined weight of the vehicle and the load cannot exceed the rated capacity and may be rolled onto the platform as a single unit.

Class C2: Industrial Truck Loading

During loading and unloading, max load on the platform may be up to 150 percent of the rated capacity. This enables you to use a forklift to load a car with freight weighing up to the rated capacity.

Class C3: Other forms of Industrial Truck Loading

During the loading and unloading process, the rated capacity must never be exceeded.

The following requirements shall apply to Class C1, C2 and C3:

The capacity of the elevator shall be not less than the load (including any truck) to be carried and shall in no case be less than 50 22 lb/ft (244.10kg/m) of the inside net platform area. The elevator shall be provided with two-way automatic leveling.

For Class C1 and C2, the following additional requirements shall apply:

For elevators with a capacity up to 20,000 lbs (9,072 kg), the car platform shall be designed for a loaded truck of weight equal to the capacity or for the actual weight of the truck to be used, whichever is greater. For elevators with a capacity exceeding 20,000 lbs (9,072 kg), the car platform shall be designed for a loaded truck of that weight or for the actual weight of the loaded truck to be used, whichever is greater.

The qualities you need in your freight elevators are the specifications we use to design and build them. We can handle any factory, warehouse or industrial project in the most economical and efficient manner possible. The controllers used in our freight elevators are the same advanced technology controllers used in our industry-leading passenger elevators.

Our traction elevators combine the latest digital technology with world-renowned manufacturing expertise to safely achieve smooth and quick acceleration, high energy efficiency and competitive pricing.

TWIN

Our one-of-a-kind TWIN passenger elevator is the industry’s first system with two independent cars, one on top of the other, in one shaft. It gives you the same conveyance capacity in 25% less space. It also lets you introduce brand-new traffic concepts while setting a new standard in high performance.

TWIN. Delivering efficiencies across the board.

  • Travel height: 250 m (825 ft)
  • Maximum speed: 6.0 m/s (1200 fpm)
  • Maximum capacity: 1,800 kg (4000 lbs)
