Max Height

60 ft (18 m)

Max Speed

200 fpm (1 m/s)

Max Load

5,000 lbs (2,500 kg)

The perfect option for low-rise buildings

A hydraulic elevator with a machine room

  • The power unit and controller are located outside of the hoistway. Choose from four applications based on travel distance and site conditions. All options are configurable to any building design.
  • endura comes with pre-assembled components and has a scaffold-free set up for a faster installation process. Choose from above- or below-ground configurations to suit your needs.
  • Our powerful controller uses solid-state technology, boosting reliability. The mounted user interface tool (UIT) provides easy access to adjustments and parameters for maintenance and service.

Easier, less frequent maintenance visits

  • The endura’s universal door operator is more reliable, resulting in fewer maintenance visits. It also provides quick and smooth door operation for passengers.
  • Maximize uptime with MAX by TK Elevator, a real-time, cloud-based predictive maintenance solution. It’s designed to identify faults before they can occur, so our technicians are able to take preemptive action for increased uptime.
Learn about MAX

A better experience for your passengers

  • A back-up battery ensures passengers are not trapped during a power failure. Passengers are automatically transported to the next available floor and doors will open, allowing them to exit safely.
  • From classic, timeless options to sleek modern finishes, you can customize endura’s interior to integrate seamlessly into the rest of your building.
  • endura’s power unit enables smooth stops and starts along with precise leveling. This gives your passengers a safe and smooth ride.

Biodegradable Hydraulic Fluid Choices

endura is engineered with sustainability in mind, as biodegradable fluid comes standard. For elevated sustainability, choose enviromax®, the industry’s first high-performing, vegetable-based hydraulic fluid that is 100% recyclable.

Choose from two hydraulic jack configurations

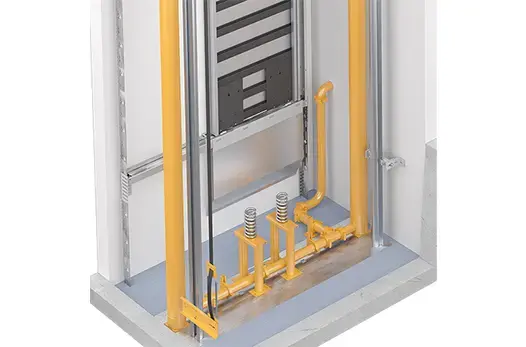

Twinpost telescopic jacks

  • – Holeless hydraulic elevator
  • – No drilling required
  • – Available in single-stage, two-stage and three-stage configurations

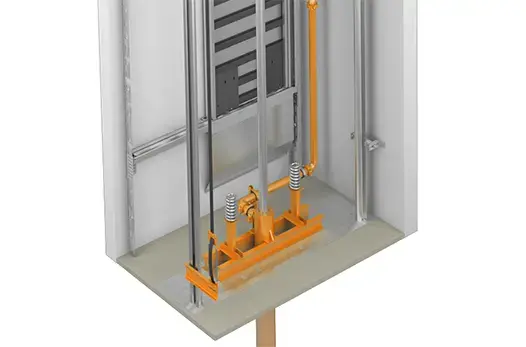

Conventional plunger and cylinder jack

  • – Holed hydraulic elevator
  • – Able to reach heights of 60 feet

Find Your Local Office

Our local networks of highly qualified, experienced account managers, technicians and staff can help you successfully manage all your mobility needs.

Contact Us

Specifications

endura is a highly-efficient elevator that offers a compact design, smooth performance, and consistent reliability.
Plan Your Elevator
endura Specifications
Speed 80-200 fpm
Jack Types Single, Two-stage, Three-stage (telescoping) for above-ground; conventional for below-ground
Door Operator Universal Door Operator
Controller TAC32
Power Characteristics 200–480 VAC, 3 phase, 60 hertz; (single-phase application is available as an option)
