victoria: Tough. Powerful. Impressive.

High-traffic areas require powerful mobility solutions – solutions like victoria, our most rugged escalator. It rises to the challenge of your most demanding project, whether indoors or outdoors, consistently delivering a stellar performance around the clock. From its impressive travel heights, transition radii and many other safety- and comfort-enhancing features, victoria never lets you down.

victoria. Power in motion.

  • 164' (50 m)

    Max rise

  • 27.3 | 30

    Inclination (degrees)

  • 24'' (600 mm) | 32'' (800 mm) | 40'' (1000 mm)

    Step width

Key benefits

victoria escalator - Exceptional rise

Incredible reach

victoria excels in the most challenging modern urban environments. With an impressive maximum travel height of 164 feet (50 meters), victoria safely and easily transports people to the deepest metro stations and highest atriums or platforms.

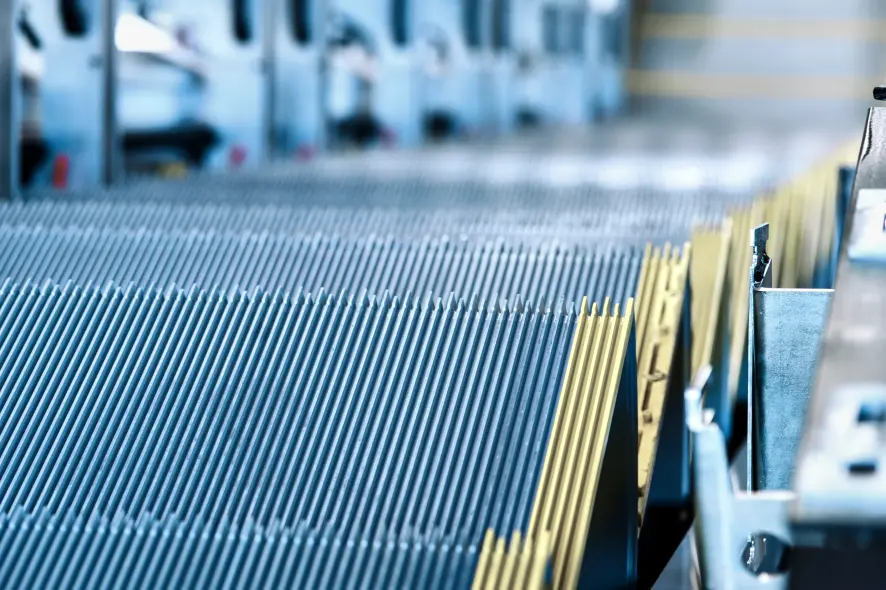

victoria escalator - Powerful step chain

Smoothest ride quality

victoria’s approximately 101-millimetre chain pitch minimizes the polygon effect and ensures the smoothest ride quality. Its powerful step chain rollers can be replaced individually, reducing both your maintenance and costs.

victoria escalator - Tough components

Built to last

victoria’s heavy-duty components, including its skirts, decking and handrail tracks, are made of stainless steel. This enables victoria to easily handle heavy loads in any climate.

victoria escalator - Convenient handrail drive

Greater efficiency

Heavy-duty environments and high rises stress an escalator’s handrail. Positioning victoria’s handrail drive in the newel, combined with its V-shaped handrail, improves both the traction and efficiency as well as increases the component’s lifespan.

Tough never looked so good

victoria is designed to be the toughest kid on the block. At the same time, a wide range of customizable design options, including various outer claddings and handrail drive positions such as in the newel, ensure that your heavy-duty escalator is a great-looking one as well.

victoria’s stainless steel front skirt stands up to the impact of trolleys and carts. A unique handrail inlet, with its two-way flap system, gives the skirt a streamlined look. It also eliminates the need for unsightly rubbers and brushes as well as improves availability thanks to its kick-resistant safety contact.

v

In traffic applications, lighting is key for guiding passengers, increasing their safety and optimizing your infrastructure’s capacity. An important consideration in modern architecture, lighting also influences our mood and enhances urban environments.

Choose from a broad selection of additional features or work with our experts to make your unique vision a reality.

Powerful details, exceptional product quality

victoria’s powerful performance is the result of meticulous engineering, select features and refined components. Carefully crafted and manufactured using our advanced production systems, victoria delivers both an amazing product experience and a sustainable return on your investment.

Handrail drive: Conveniently located

victoria’s handrail drive can be located in the newel outside of the supporting structure, an indispensable option for higher heights that offers multiple benefits.

Easy access

Great maintainability

The handrail drive is readily accessed for maintenance without needing to remove any steps. As a result, the chain is easily adjusted through a sprocket and the handrail is tensioned via a compression spring.

Less handrail bending

Great durability

Having the handrail drive in the newel reduces handrail bending, thanks to the large guiding radii, and increases the component’s life expectancy.

Simple handrail exchange

Optimal availability

When the handrail reaches its end of life, it’s rapidly replaced within the balustrade using a lock, ensuring minimal downtime.

Step chain: Tough on the outside

The high-precision rolled flat link hardened chains are specifically manufactured for our escalators and come with different breaking loads to ensure stability under any condition.

Step chain pitch

Excellent ride quality

victoria’s approximately 101-millimetre small chain pitch enables the chain to slide smoothly on our best-in-class track system, minimising the polygon effect for the best possible ride quality.

Even traction on rollers

Reduced wear and tear

Locating the step chain rollers outside of the step chain means that the traction is more evenly distributed and the lifespan of each roller significantly increased.

Outside roller

Quicker roller exchanges

In the unlikely event that a roller needs to be changed, each roller can be replaced individually without opening the chain, keeping any downtime to a minimum.

Sustainable performance, day in, day out

We strive to continuously improve our escalators’ performance and sustainability. This includes increasing our operational efficiency while reducing the resources and materials we use as well as the waste we produce.

Energy efficiency class

Highest energy efficiency Class A+++

Based on the ISO 25745-3 standard and depending on your final configuration, victoria delivers the highest energy efficiency.

Energy-saving features

Up to 90% reduction in energy consumption

victoria’s LED lighting cuts energy consumption by up to 90%. You can further reduce the escalator’s CO2 footprint by opting for energy-saving sleep mode operation.

Latest motor technology

Premium efficiency motors

Our state-of-the-art premium efficiency motors reduce power consumption, have longer lifespans and minimise maintenance.

ETA drive option

Increased efficiency, reduced maintenance

With its 96% efficiency and lubrication lasting 40,000 hours, our ETA drive is good option for both you and the environment.

Direct drive

Great lifespan and maintainability

With its pre-oiled gearbox, our chainless spur gear drive option is quiet and durable as well as eliminates any chain-related maintenance.

Heavy-duty safety for high-traffic areas

Since victoria operates in the most demanding environments, it leaves no stone unturned when it comes to safety. A proven product design, best-in-class components and more than 50 safety features and options keep your passengers safe at all times.

Specifications victoria
Rise Up to 164' (50 m)
Max capacity (people/hour) 6,000
Step load Rated for 320 lbs/step
Inclination 27.3° or 30°
Application Transit duty
Step chain roller Outside
Location handrail drive Truss | Newel
Handrail shape U-shape | V-shape
Climate conditions Indoor | Outdoor
Nominal step width 24" (600 mm) | 32" (800 mm) | 40" (1000 mm)
Speed 100 fpm (0.5 m/s)
Flat steps 2 (minimum per code), 3 or 4 (optional upon request)
Balustrade Robust | Metal
Aesthetic lights Balustrade | Skirt | Truss | Ambient cladding | Soffit cladding
Traffic lights Floor plate | Decking | (Glass) Newel (high deck balustrade) | Post
Safety lights Step gap | Comb plate
Drive unit Chain drive | Direct drive
Usage factor 20–24 hours/day
Average life span 30 years

We reserve the right to make technical modifications to our products at any time and exclude all liability. Shown thresholds depend on configuration details and may vary in individual cases. Availability of options and features also depends on individual configurations. Illustrations aid the general understanding and may differ from the actual design.
