Max Height

350 ft (100m)

Max Speed

600 fpm (3 m/s)

Max Load

5,000lbs (2,500 kg)

An elevator that defines innovation and exceeds expectations

A gearless traction machine room-less elevator

  • Everything fits into the hoistway for a truly machine room-less design. There’s no need for a control closet as the controller fits into the door jamb. evolution 200 also comes with a smaller overhead and pit which will result in more leasable building space.
  • evolution 200 is supported by its rails rather than your building, with no need for overhead support steel. That means installation requires less coordination between trades, helping to optimize costs and keep your project running on time.
  • Installation is simple. Everything you need arrives at the job site in one sequentially packaged shipment.

Incorporating the technology of tomorrow

  • Maximize uptime with MAX by TK Elevator, a real-time, cloud-based predictive maintenance solution. It’s designed to identify faults before they can occur, allowing our technicians to take preemptive action.
  • evolution 200 travels up to 25% faster than competitors and has a high max capacity (5,000 lbs), so you can move people efficiently. Keep your tenants happy with optimized traffic flow and fewer delays.
Learn about MAX

Keep tenants comfortable and happy

  • Choose from high-end features that convey elegance and ease. Because evolution 200 has a high weight capacity, options can include heavier materials like marble and granite for floors and fixtures.
  • Give tenants a luxurious, smooth ride. By using a finely tuned electronic drive and belts (rather than ropes), the evolution 200 operates without jerky stops and starts.
  • evolution 200 is the quietest mid-rise elevator in the industry, both inside the cabin and out. Operating at just 50 decibels, it is no louder than a standard refrigerator.

Sustainability features and LEED credits

  • Our advanced regenerative drive comes standard. It feeds unused energy back into the building, so you save money and use less power.
  • Energy-efficient LED cab lights and fans turn off when elevators aren’t in use, which increases sustainability and cost savings.
  • We have material transparency certifications and declarations to help you obtain LEED certifications and credits.

Find Your Local Office

Our local networks of highly qualified, experienced account managers, technicians and staff can help you successfully manage all your mobility needs.

Contact Us

Specifications

Built with robust and high-quality components, evolution 200 offers reliability, speed and sustainable performance.
Plan Your Elevator
evolution 200 Specifications
Solid state brake controls Dual braking system (main and emergency), contactor-less components for emergency and normal brakes as well as a motor that reduces noise
Number of belts Four or six, based on car capacity, car weight requirements and travel
Suspension Flat belt with 14 internal steel cords encased in FT1 fire rated PU material
Belt monitoring Monitored by residual life span, traction loss detection device, belt member loss and a trip count
Machines Permanent magnet gearless machine
Drive Fully regenerative digital drive with automatic rescue included
Controller TAC32T (in the wall or in optional control space)
Car guides Roller guides standard at 350 – 600 fpm
Counterweight guides Slide guides standard at 200 – 600 fpm (counterweight-side only)
Governor Remote resetting governor
Finished floor height 3/4" or 3/8" standard

Reduce building traffic with AGILE

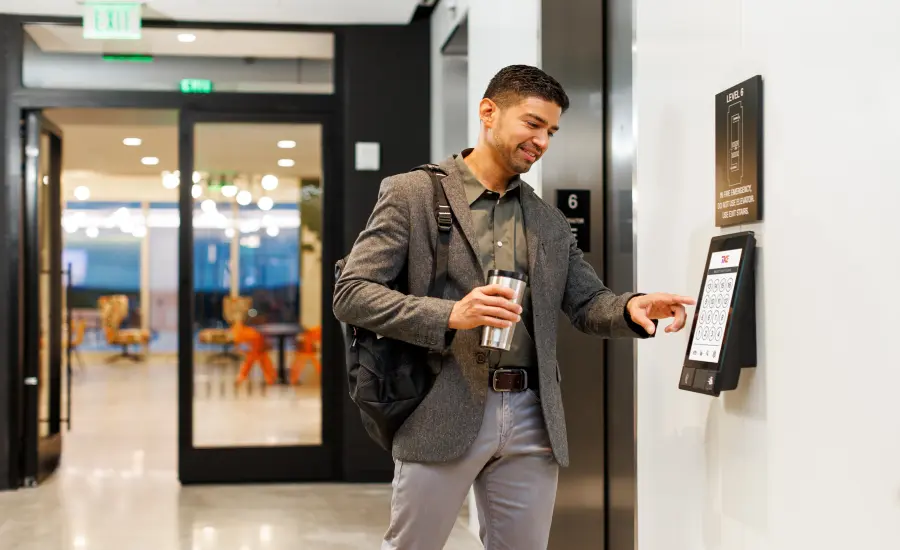

Our Destination Dispatch solution, AGILE, improves elevator performance, enhances passenger experiences, improves traffic flow and increases security. AGILE groups passengers together who are traveling to similar floors, resulting in 25% faster travel time.
